Introduction:

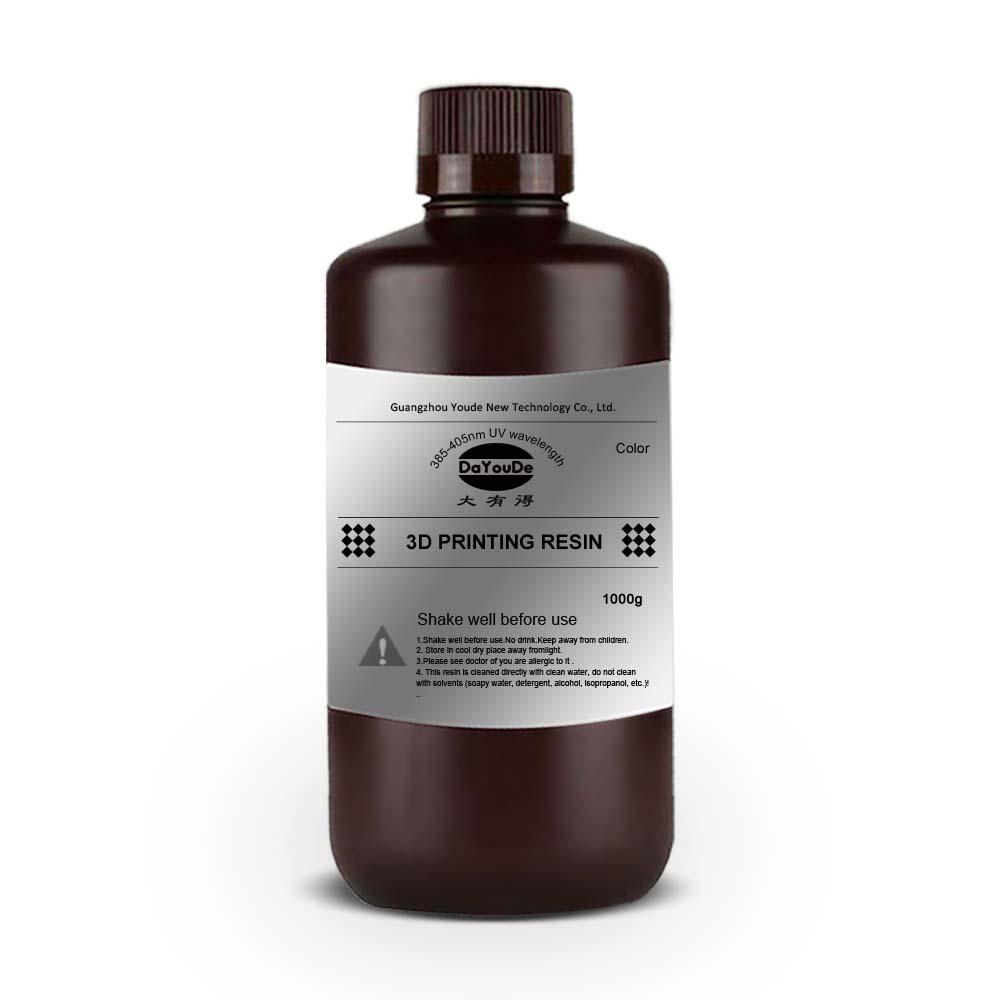

Name:3D printing medical grade high transparent photosensitive resin
Model: 605A
Colour: Colorless and transparent
Type of packing: bottles
Packing specification: 500g/1000g
About type 605A:
Used for 3D printing of occlusal splints, such as orthodontic braces.
Applicable 3D printer：
Suitable for LCD/DLP printer with wavelength of 365-405nm
Applications: Seals, gaskets and plugs, prototyping and small-batch production of small components for medical equipment, connectors, consumer and industrial products, prostheses, anatomical and medical models, custom wearable devices and ear-worn devices.
Features:
01、Strong flexibility
The cured brace prototype is flexible and flexible, which not only enables it to withstand greater pressure, but is not prone to breakage.
02、Low shrinkage
It is specially designed to reduce volume shrinkage, ensuring the dimensional stability of the printed model.
03、Smooth and delicate surface
Based on the upgraded formula developed by our company, after the high-transparent prototype is cured, it can show a smooth surface, and the texture is delicate, without stacking, and not rough.
04、High transparency
Dayoude uses imported raw materials to upgrade the highly transparent formula, and is committed to improving the transparency of the cured brace prototype. It can be close to a lens-like visual experience and is resistant to yellowing.
05、Material stability
The liquid resin will not agglomerate after being stored for a long time, and the unused resin will be guaranteed for 12 months from the date of delivery.
06、Good durability
The resin is easy to store. It can be stored in a humid environment without absorbing moisture, and there is no chemical reaction in the oral cavity, so it has strong durability.
TECHINCAL DATA：
| Test project | Test results |
| Viscosity | 260-350cps@25℃ |
| Critical exposure energy | 8.1-9.0mJ/cm2 |
| Tensile strength | 35MPa |
| Tensile modulus | 1,200MPa |
| Elongation at break | 15-25% |
| Notch impact strengt | 30J/m |
| Thermal deformation temperature | 50℃ |
| Shaw hardness | 81D |
Notice：
The above values may vary depending on the geometry of the part, printing settings, temperature changes, secondary post-curing, etc. The actual values may vary. Therefore, users must test the product before use to ensure that it can meet your final use of printing performance. Require. The above values are typical values and we do not agree with them as binding material specifications or warranties unless expressly agreed in writing. The final effect depends on the actual usage of the user, this table is for reference only.
